AOI High-Speed Machine for Seamless Capsule Appearance Defects

The machine is specially used for testing the appearance defects of dripping pills. Common defects include bubbles, empty pills, solid, spots, too large, too small, mixing, black spots, roundness is not full, lack of material, tail, color mixing, etc. It can realize automatic feeding, sorting, photography and NG product sorting. In addition, Adopting industrial touch screen as operation interface is easy to operate and reduces the requirements of workers' cultural level. It can also achieve 7*24 hours of continuous production.

Functional Characteristic
New Mechanical Rotation Mechanism

New mechanical rotation mechanism is added to achieve 360-degree comprehensive inspection.

Multi-channel Parallel Detection

The equipment adopts multi-channel parallel detection, effectively improving inspection speed with the? rate as of 800,000 Pcs/h.

Mechanical Sorting Function

Mechanical sorting function can be extended to prevent the deformation capsule?from disturbing the afterwards procedure.

Workpiece

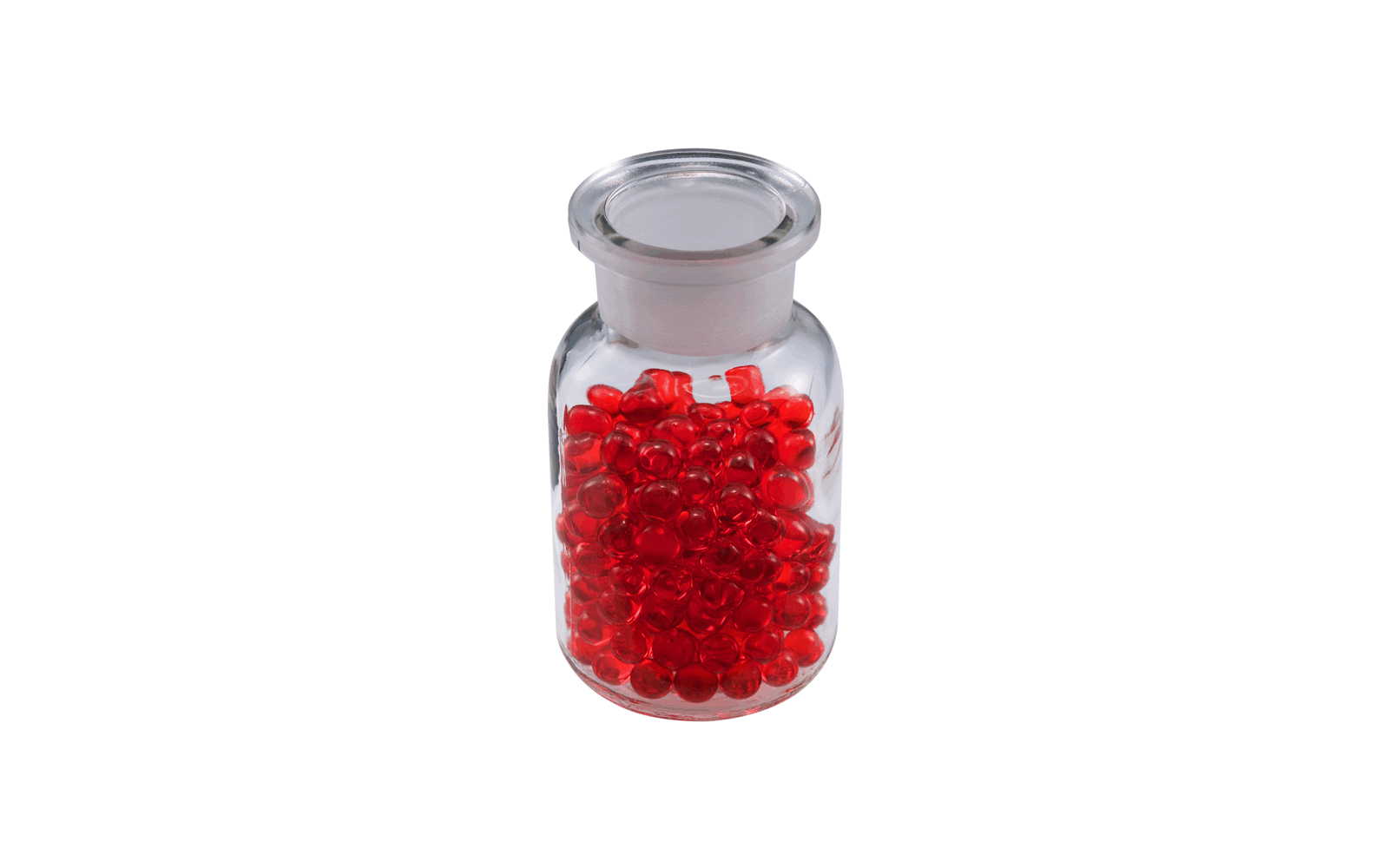

Capsule

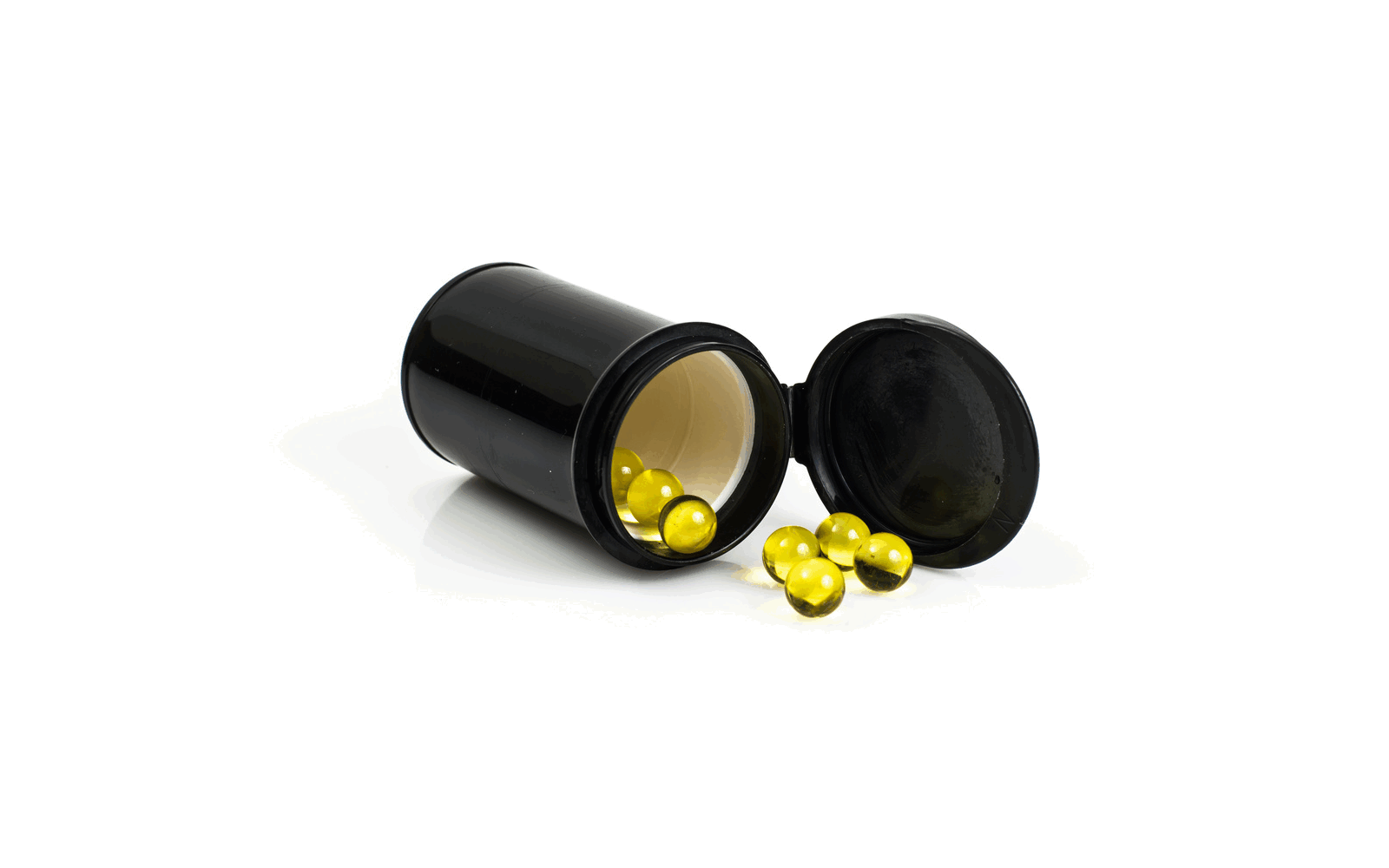

Pill
01
02
Technical Specifications

Inspection Item

Bubbles, and pills, cap pills, empty pills, solid, spots, trailing, oil spill, small holes, large, small, eccentric, mixing, black spots, holes, roundness is not full and other appearance defects .

Inspection Range

Ф 2-4mm

Optical Resolution

0.03mm

Minimum defect size

0.2mm

Mean Time to Failure

10,000H

Speed

800,000pcs/h

Power

2000 W

Voltage

220V, 50HZ

Air Power

0.50.8MPa

Size/Weight

1.8 m*0.8 m*1.6 m / 300kg

 working environment

5-30℃;Humidity<70。

Features

1. The size of dripping pills was counted in real time and displayed intuitively with the normal distribution map.

2. The device real-time display detection status and NG number alarm.

3. The software has remote technical support capabilities.
